In this section, we will explore how to create and manage user layers in the ECDIS software. User layers allow you to add various objects to the map, such as points, text, circles, lines, and areas, and organize them into convenient groups and folders. You will learn how to create new layers, edit existing ones, place objects based on precise coordinates, and manage layer visibility on the map. This process will help you customize the map according to your needs and make it more informative.
4.2. User Layers
>
4.2. User Layers
>
Part 4 - Instruments
Просмотр данных
Select 'Part 1 - Interface' to start the tutorial. After successfully completing this part, new sections and all subsequent ones will be accessible in this menu.
The currently examined element is indicated by a green outline and numbering. Explanations will be provided in this window. After reviewing the information, click the 'Next' button or follow the instructions. If you wish to go back to the previous step, click 'Back'. If you decide to finish the study prematurely or choose another section, click 'End'.
Message
0

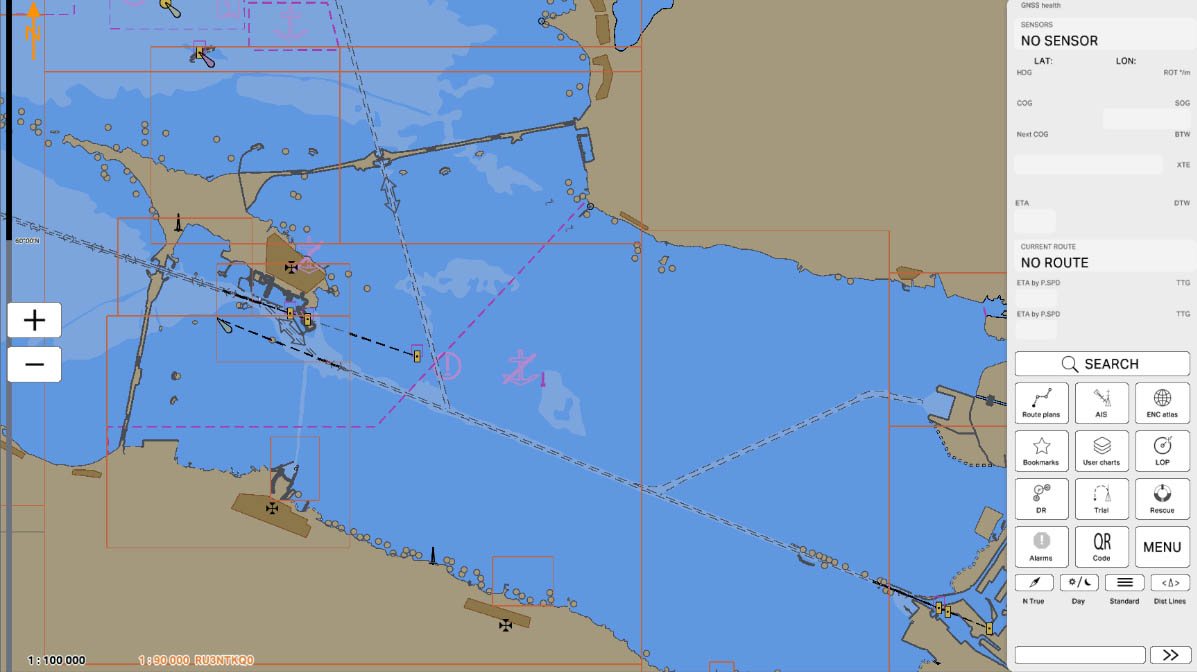

To navigate to the User Layers Panel, click the "UL" button located in the block of main buttons on the main panel.
Basic Program Control Buttons
1

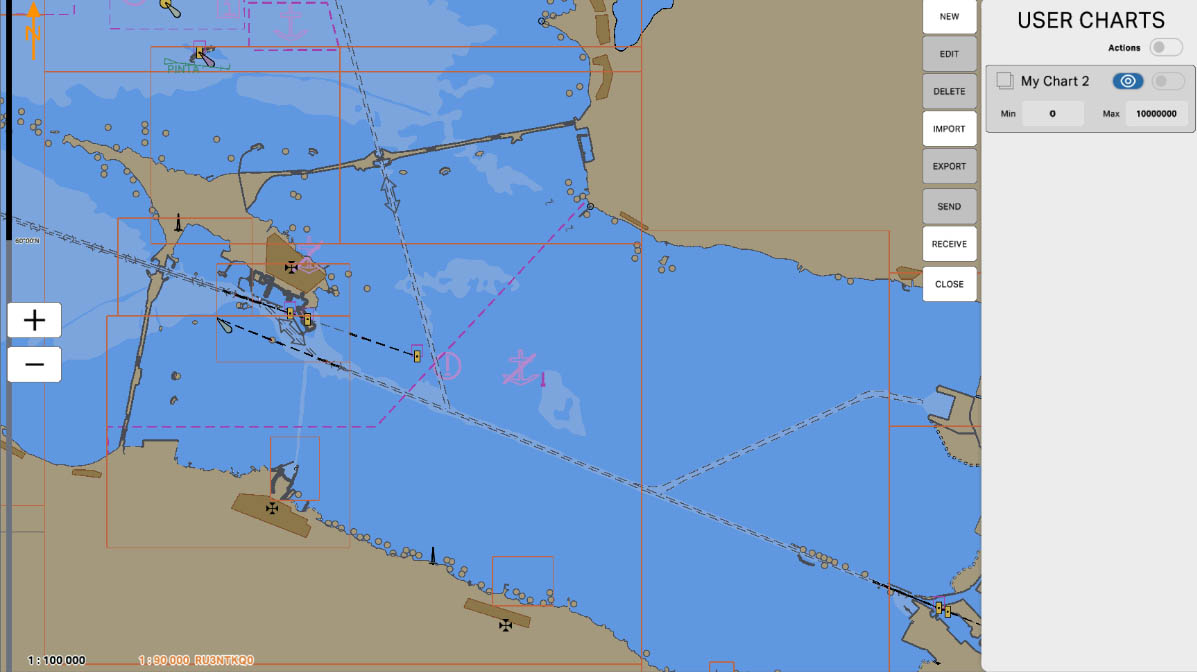

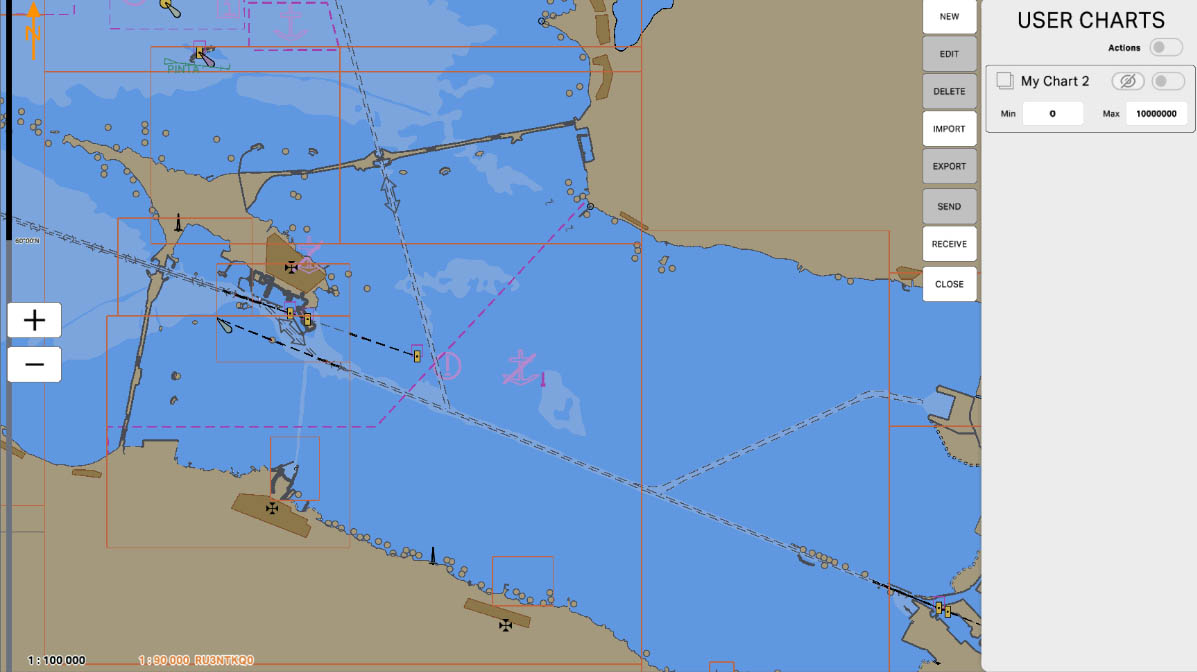

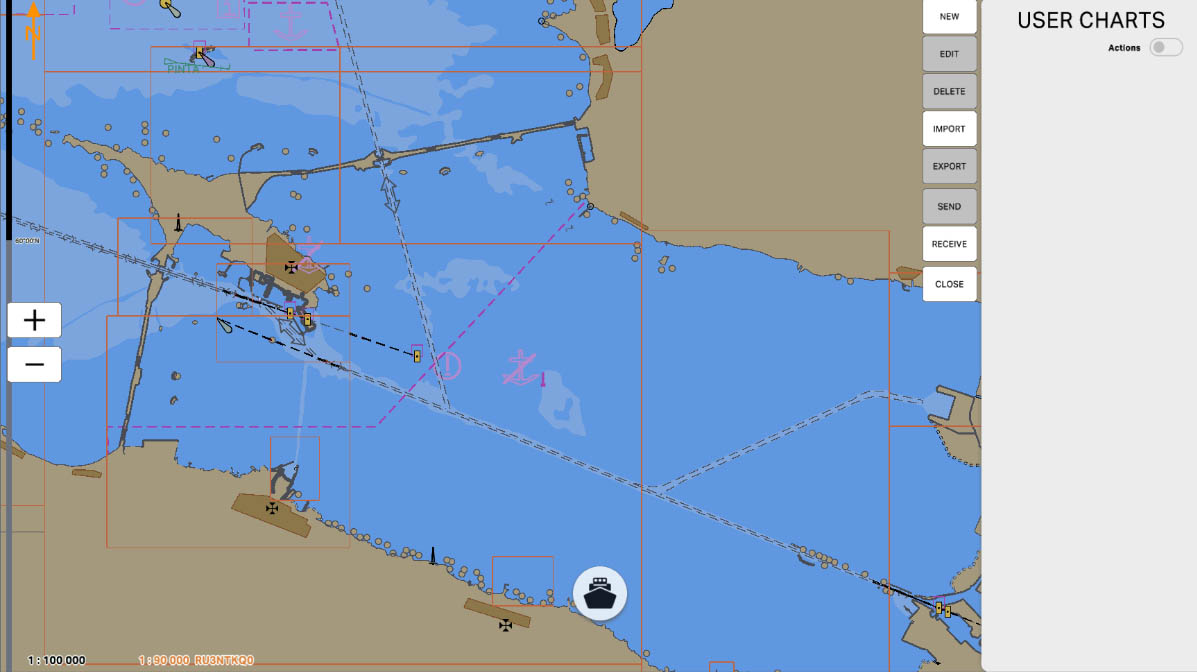

This is the User Layers panel, where the list of layers you add will be displayed. Layers can be imported from external sources or created directly in the program editor. User layers allow you to add additional information to the map, such as special zones, or markers, that are important for specific operations or sailing conditions. This helps enhance the accuracy and usability of navigation information.

To proceed and start creating a new layer, click the "New" button.
USER LAYERS
2

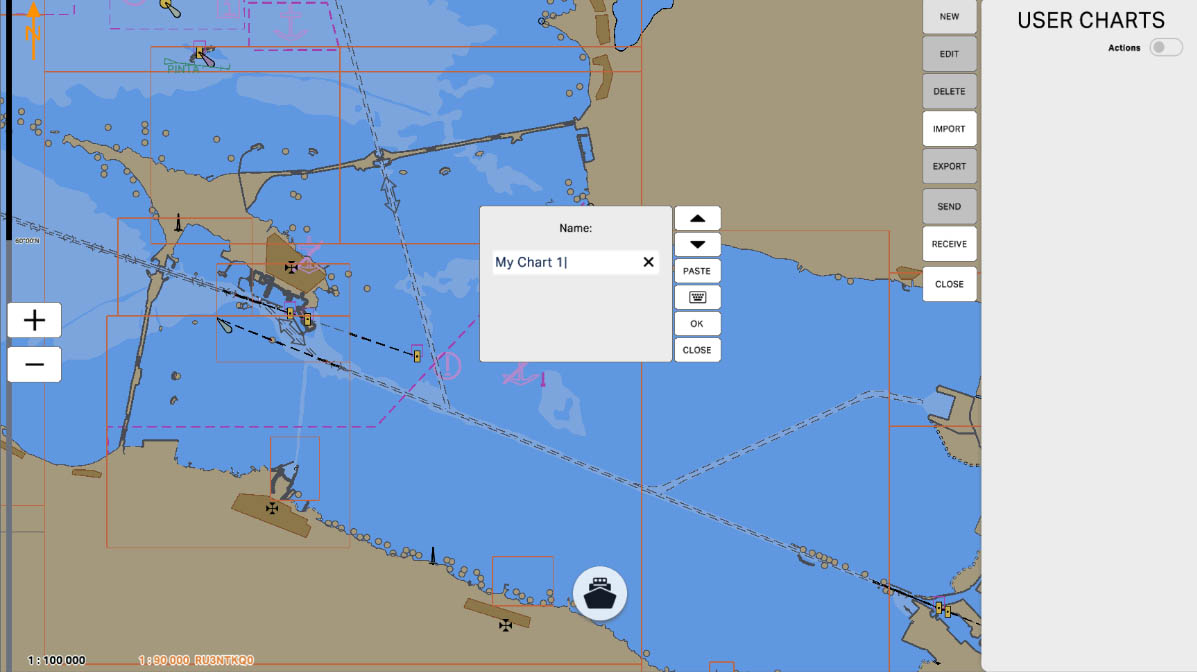

The program immediately prompts you to enter a name for the new layer. After entering the name, confirm the action by clicking the "OK" button. The layer name should be descriptive to easily identify its content and purpose.

To proceed, click the "OK" button.
Entering a Name for the New Layer
3

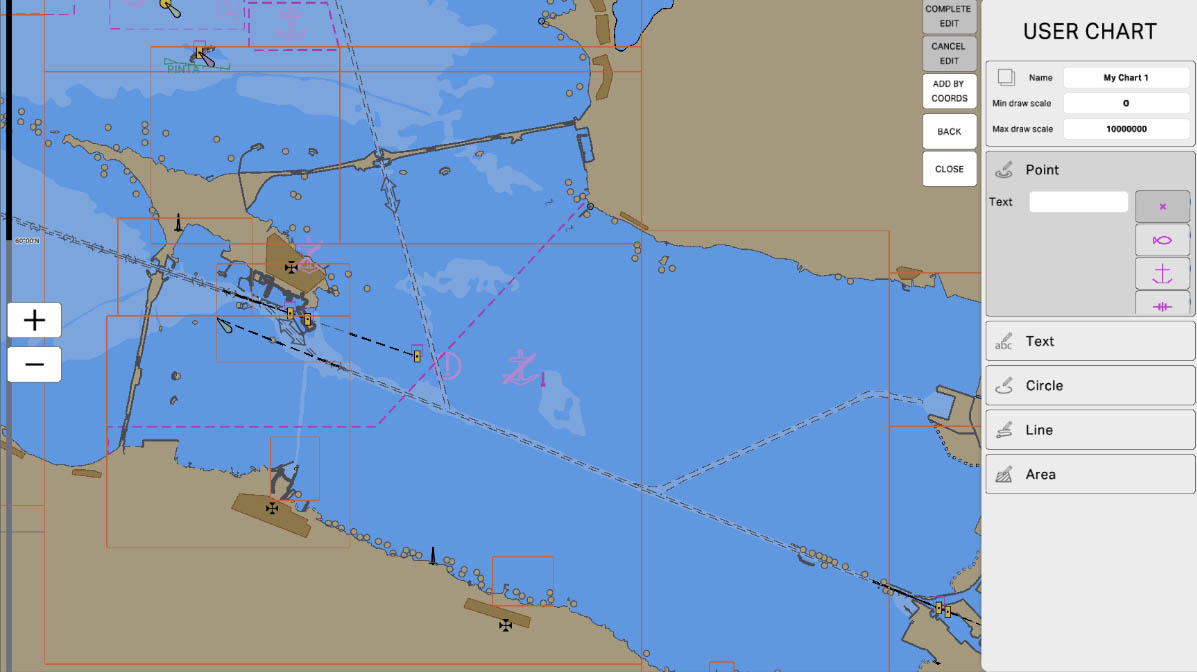

After confirming the name for the new layer, the layer editor opens. All primary data for the layer can be edited here. The editor allows you to add, delete, and modify objects, as well as change layer properties.

To proceed and rename the layer, click on the field with its current name.
Editing the Layer
4

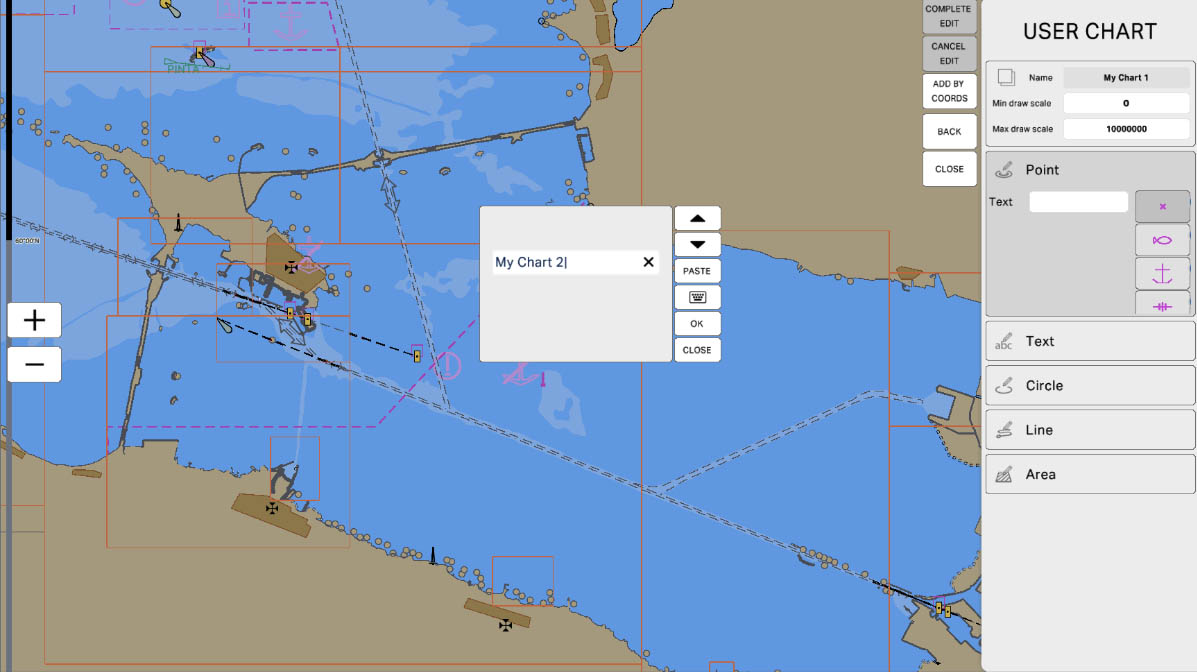

Delete the old layer name and enter a new one, then confirm the action by clicking OK. After entering the new name, ensure it accurately reflects the content or purpose of the layer.

To proceed, click OK.
Renaming the Layer
5

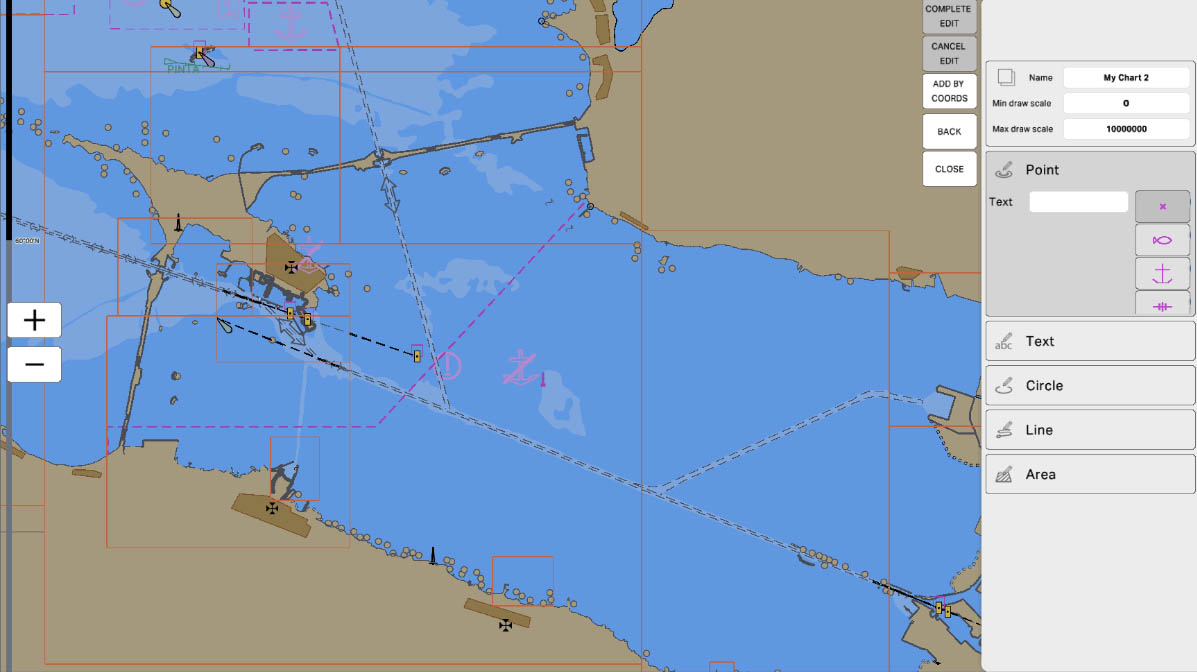

Now let's go over the main drawing tools in the layer editor. The first tool is Point. It is used for adding points to the map, which can serve as markers or denote important locations. Use this tool to label specific coordinates, such as buoys, beacons, or any other objects that require precise indication on the map.

First, click on the empty text field to enter the name of the point.
Point Tool
6

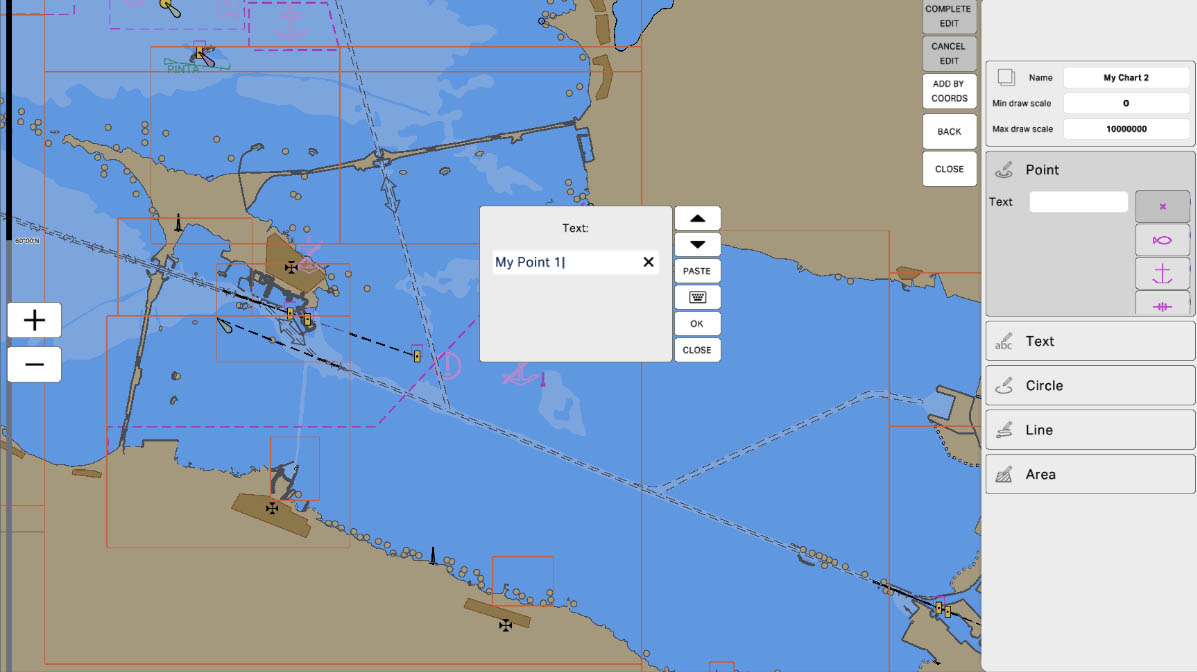

The program prompts you to enter a name for the point you are creating. After entering the name, confirm the action by clicking the OK button.

To continue, click OK.
Entering the Point Name
7

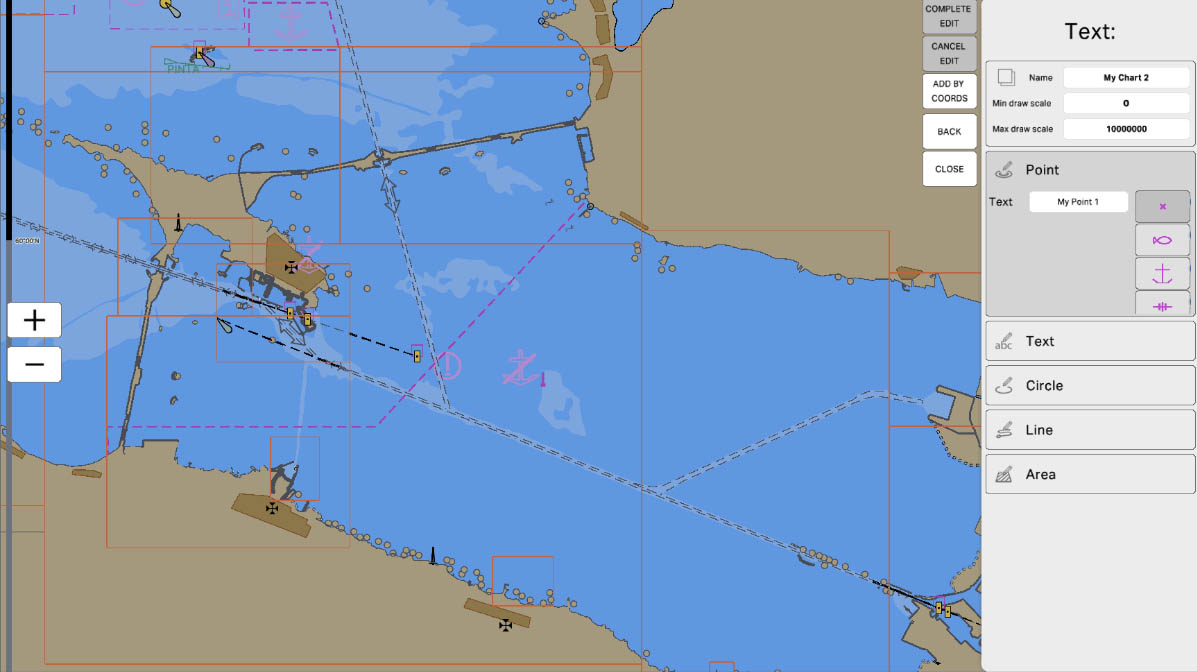

After the point name is set, you need to choose the required symbol from the list of suggested options.

Click "Next" to continue.
Selecting a Symbol for the Point
8
The symbols are arranged in a list that can be scrolled down.

Click on the suggested symbol to continue.
Selecting a Symbol from the List
9
The symbol is selected, indicated by the green highlight around the symbol button. A point can be placed on the map in two ways: by coordinates, if you know the exact coordinates; or visually, by clicking on the map where the point should be. We will now look at the visual method for placing the point.Using the visual method allows you to place the point more accurately and intuitively on the map, which is especially useful when working with areas where local details are important.

Click "Next" to continue and proceed to placing the point.
Placing a Point on the Map
10

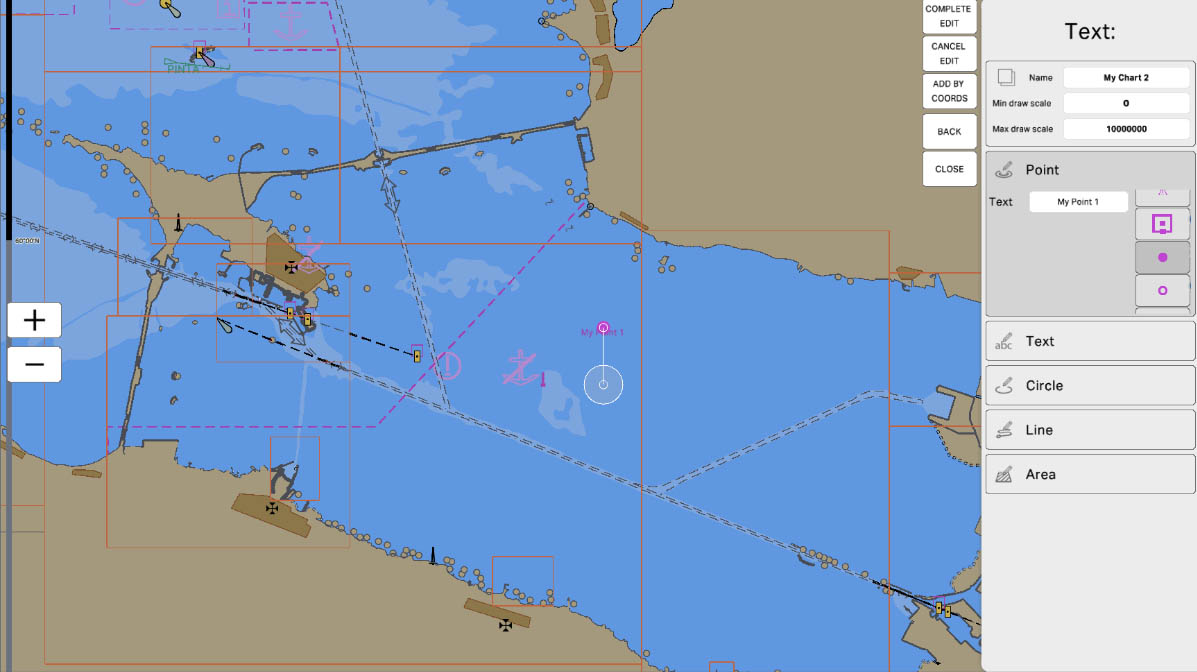

By clicking on the map, the point is set, and you can move it for more precise positioning. Moving the point is done by holding down the left mouse button on the large circle. This allows you to accurately place the point in the desired location.

To continue and confirm the action, click "Complete Edit".
Moving the Point
My Point 1
10
10
The point has been successfully placed. Next, we will look at the text editing tool. Text allows you to create various annotations, notes, or explanations on the map, making it more informative and user-friendly. This tool is useful for adding important information that may be necessary for navigation or route analysis.

Click on the "Text" tab to continue and learn how to add textual explanations to the map.
Working with Text on the Map
My Point 1
11

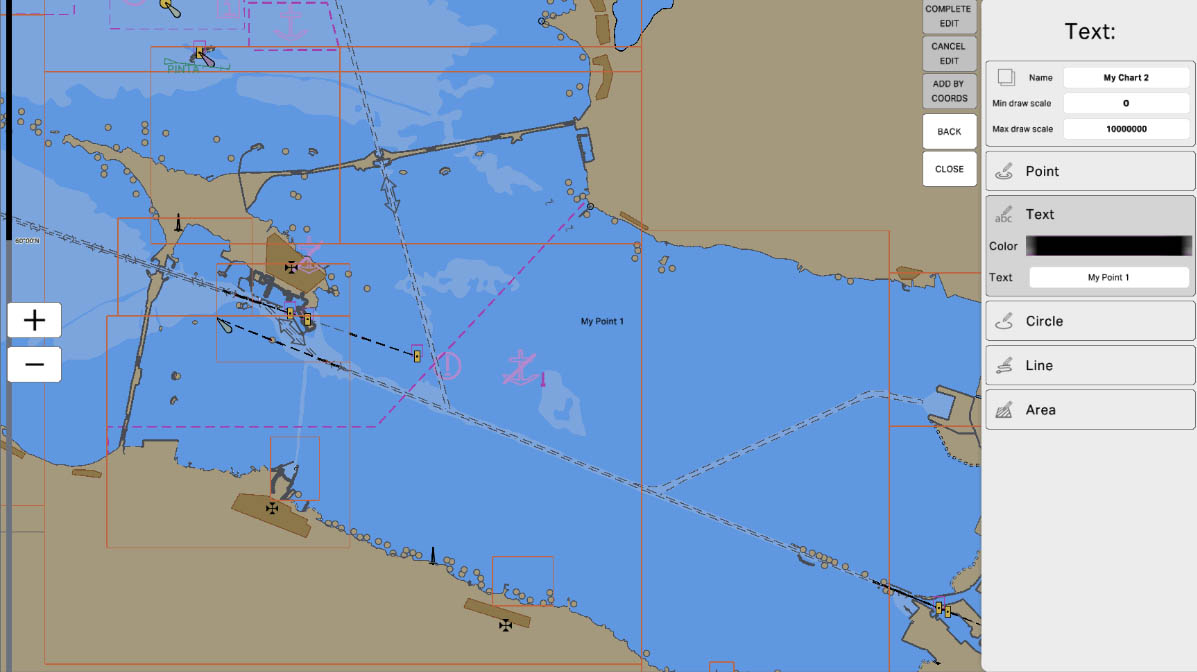

The text tool has two adjustable parameters - text color and the text itself. The text color helps to highlight important information, making it more noticeable on the map. You can choose any shade that best suits your needs.

To proceed and set your text color, click on the black box (this is the default black text color).
Changing Text Parameters
My Point 1
12

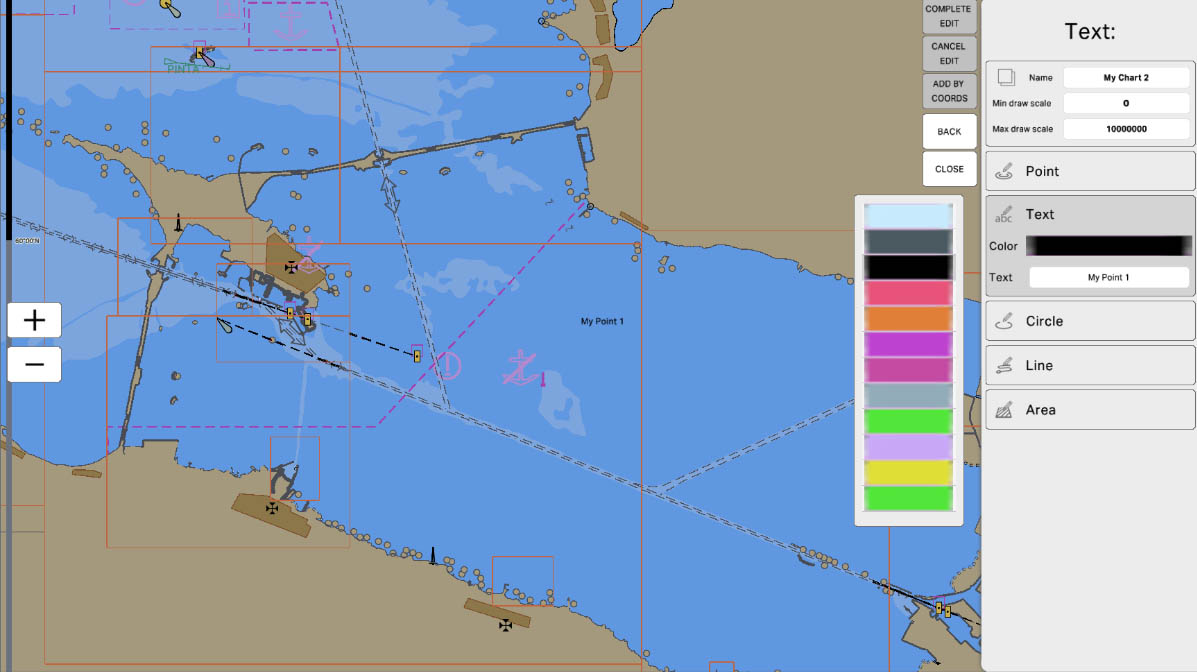

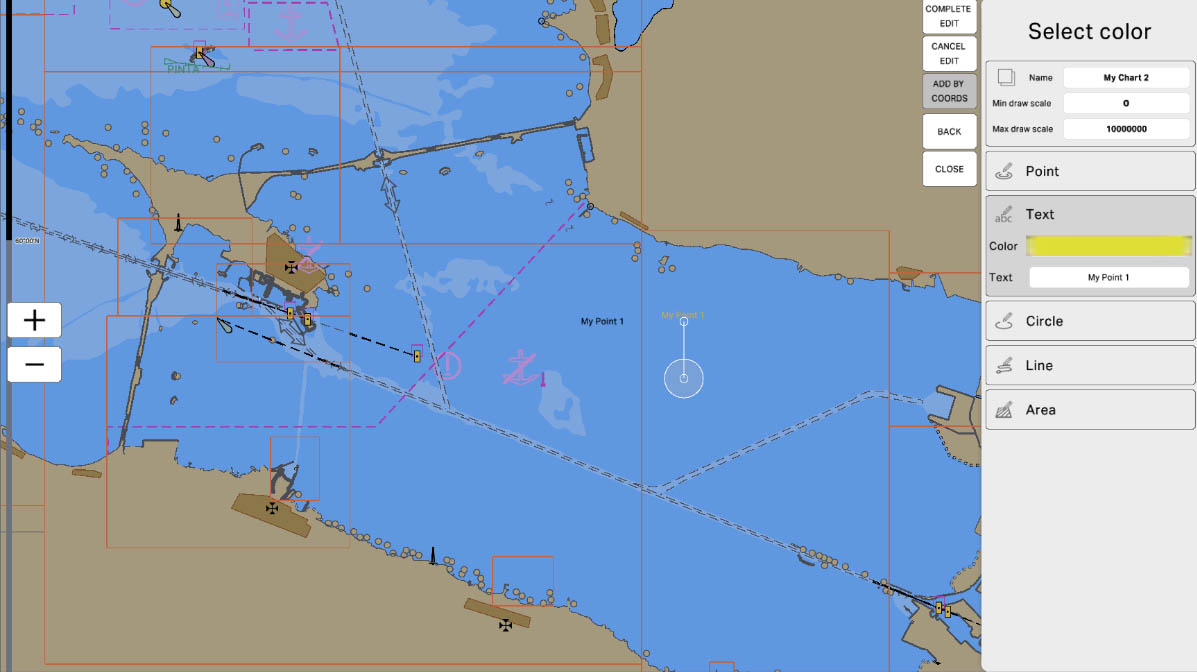

At this stage, you need to select your preferred color from the list of preset colors. The colors are provided for convenience, and you can choose any of them to highlight the text on the map.

To continue, click "Next".
Selecting Text Color
13
By clicking on the map, the text is set, and you can move it for more precise positioning. Moving the text is done by holding down the left mouse button on the large circle. This allows you to accurately place the text in the desired location.

To continue and confirm the action, click "Complete Edit".
Moving the Text
My Point 1
My Point 1
14
14
The text has been successfully placed. Next, we will explore the circle editing tool.
The "Circle" tool is used to mark circular areas on the map. This can be useful for highlighting zones such as safety areas, action radii, or other circular regions that need visual indication.

Click on the "Circle" tab to continue.
Circle Tool
My Point 1
My Point 1
15
My Point 1
My Point 1

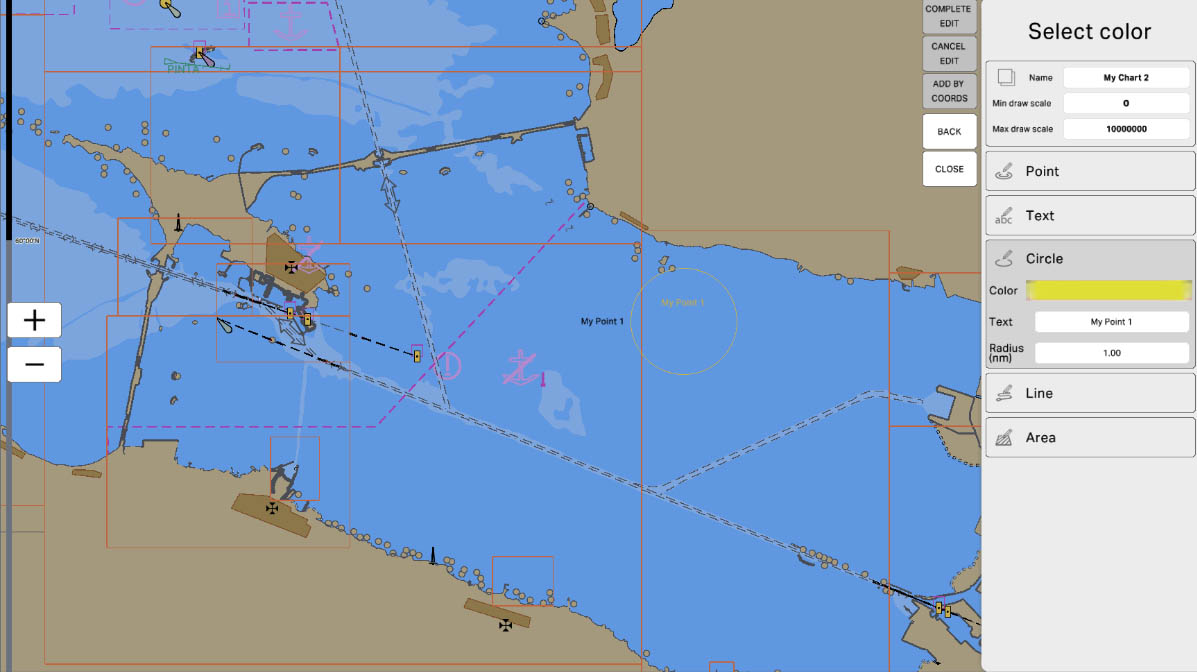

You can assign a color, name, and radius (nm) to the circle. By default, the radius is set to 1.00. Click on this value to edit it.Adjusting the radius of the circle allows you to precisely set the size of the highlighted area on the map according to your needs.

To change the radius, click on the current radius value and enter a new value in the field that appears.
Configuring the Circle
16
My Point 1
In the pop-up window, you can enter the radius value using the regular keyboard, the on-screen keyboard, or the "Increase" / "Decrease" buttons. These buttons adjust the numeric values in increments of one unit.

Click the "Increase" button (up arrow) until the value reaches 3.00.
Configuring the Circle Radius
17
In the pop-up window, you can enter the radius value using the regular keyboard, the on-screen keyboard, or the "Increase" / "Decrease" buttons. These buttons adjust the numeric values in increments of one unit.

Click the "Increase" button (up arrow) until the value reaches 3.00.
Configuring the Circle Radius
My Point 1
17

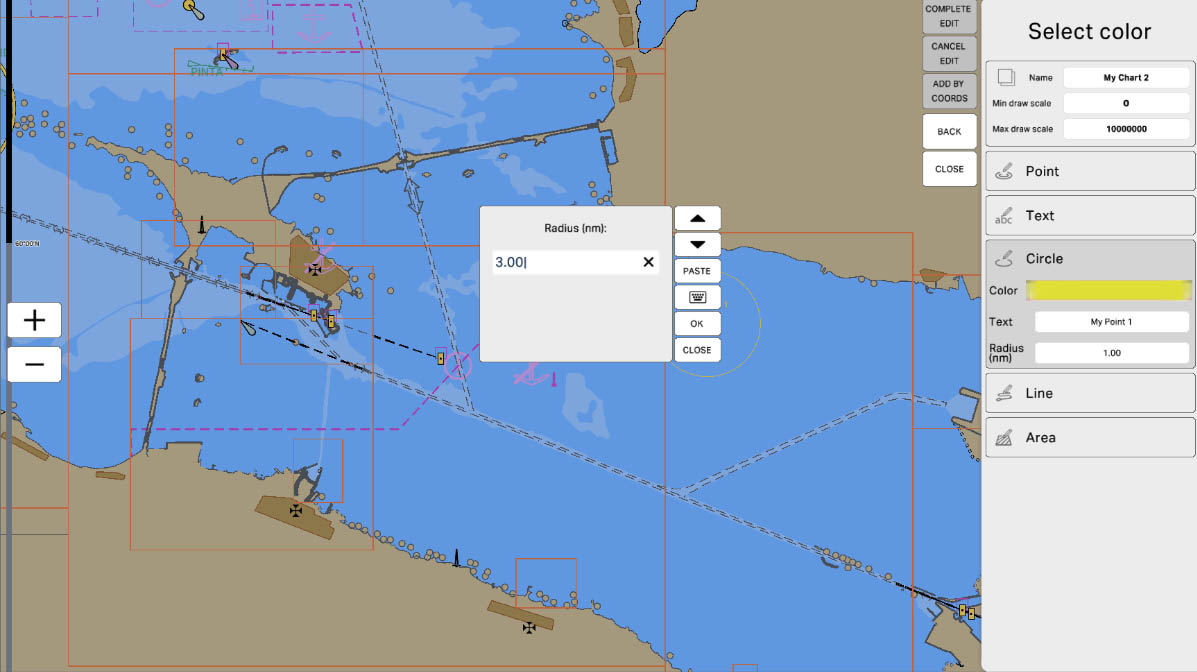

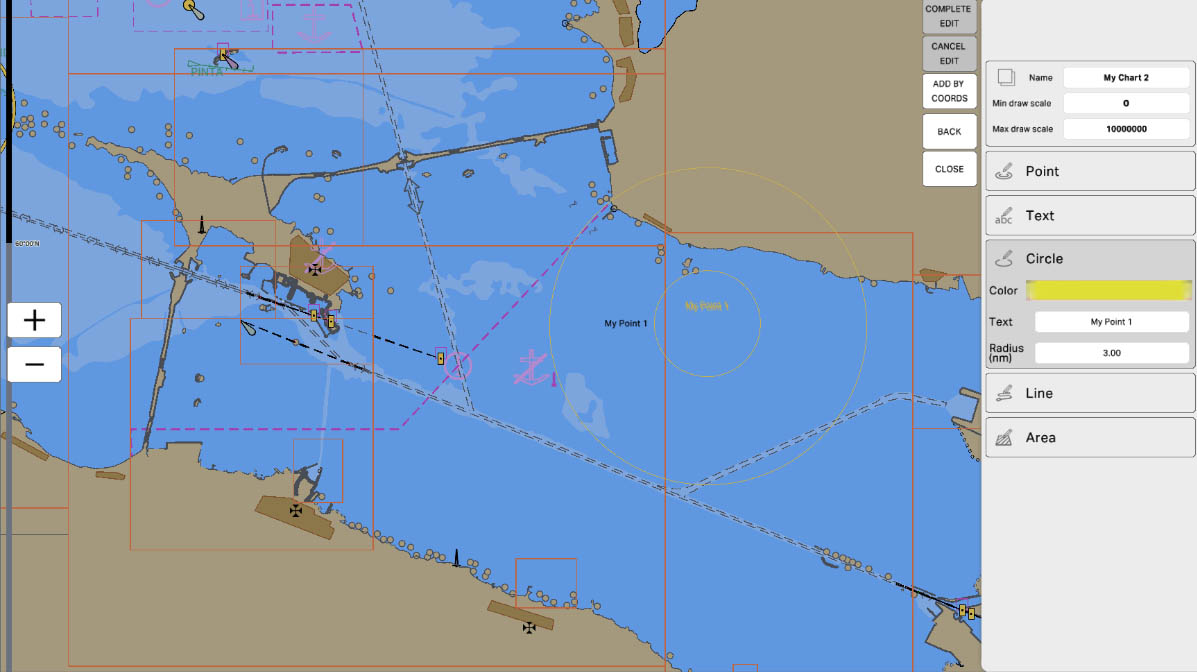

The radius value is now set to 3.00 nm. Click the OK button to confirm your choice and finalize the circle radius setting. This action will save the entered value and apply it to the circle you've created on the map.
Confirming the Radius Value
My Point 1
17
You can place the circle on the map in two ways: by using coordinates if you know the exact coordinates for the center of the circle, or visually by clicking on the map where you want the center of the circle to be located. In this section, we will look at the visual placement method.

Click the "Next" button to continue.
Placing the Circle on the Map
My Point 1
18
My Point 1

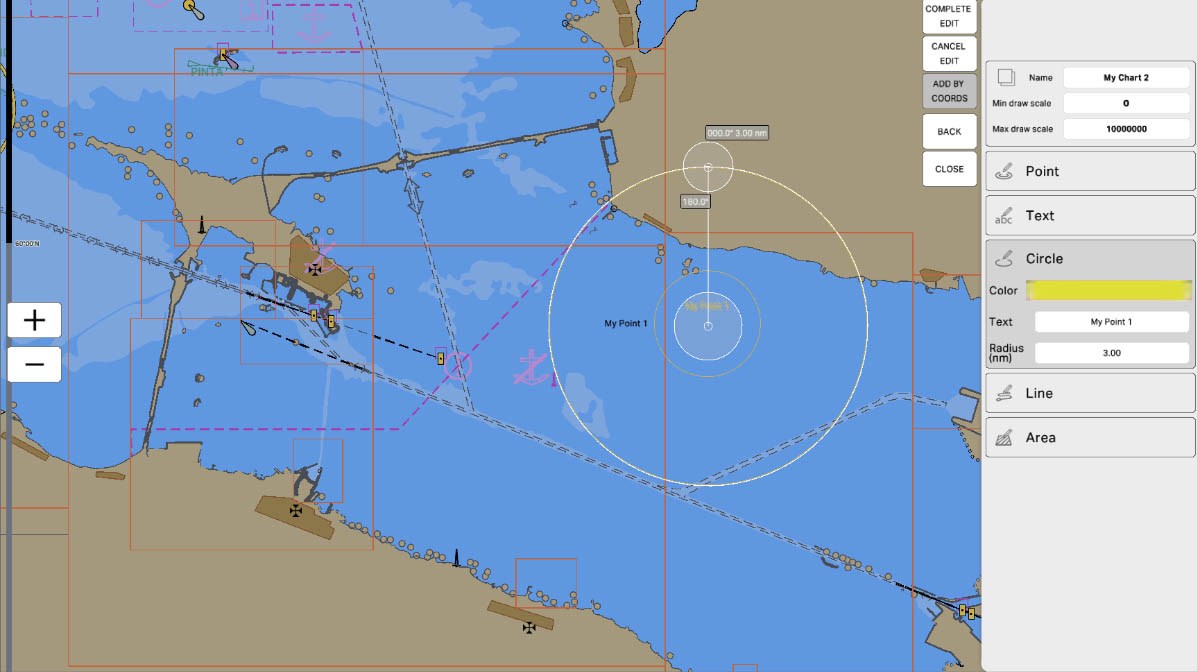

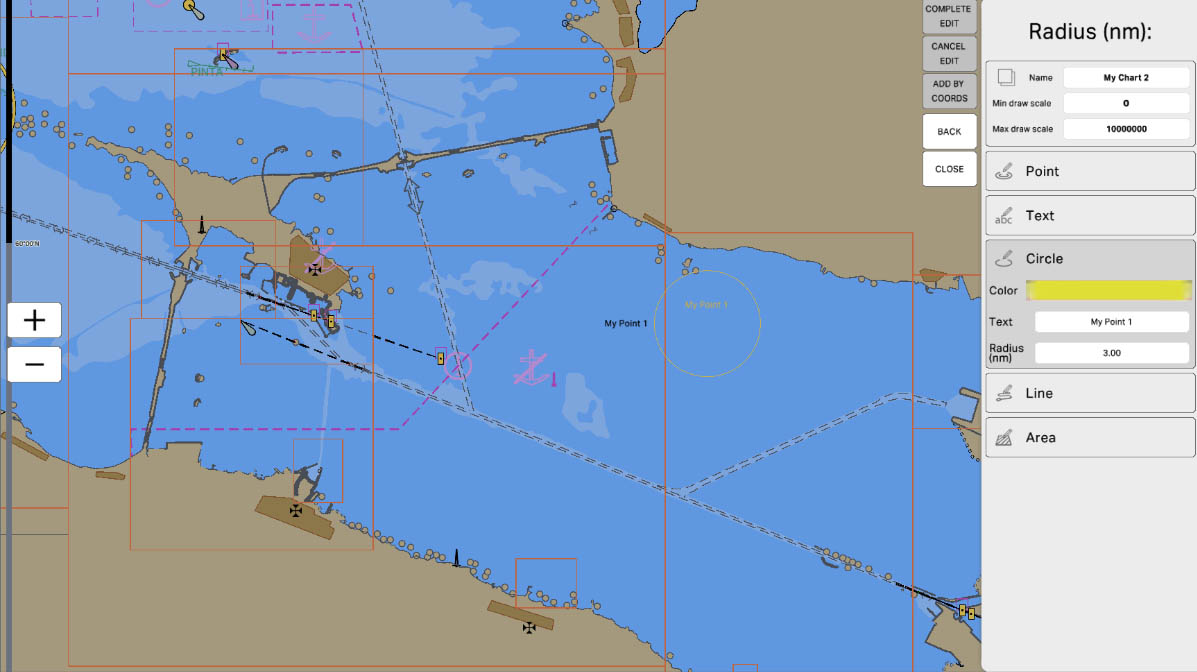

The circle has been successfully placed on the map. You can move it by dragging the center of the circle with the mouse to achieve more precise positioning.

Once you are satisfied with the placement of the circle, click the "Complete Edit" button to confirm the changes and finish the placement process.
Completing the Circle Placement
19
My Point 1
My Point 1
19
The circle has been successfully placed. Next, we will explore the editing tool - Line. The line tool is used to mark routes, boundaries, or other linear features on the map. It allows you to draw a straight line between two points, which can be useful for creating navigation routes, defining zone boundaries, or visualizing directions.

Click on the "Line" tab to proceed.
Editing Tool - Line
My Point 1
20
My Point 1

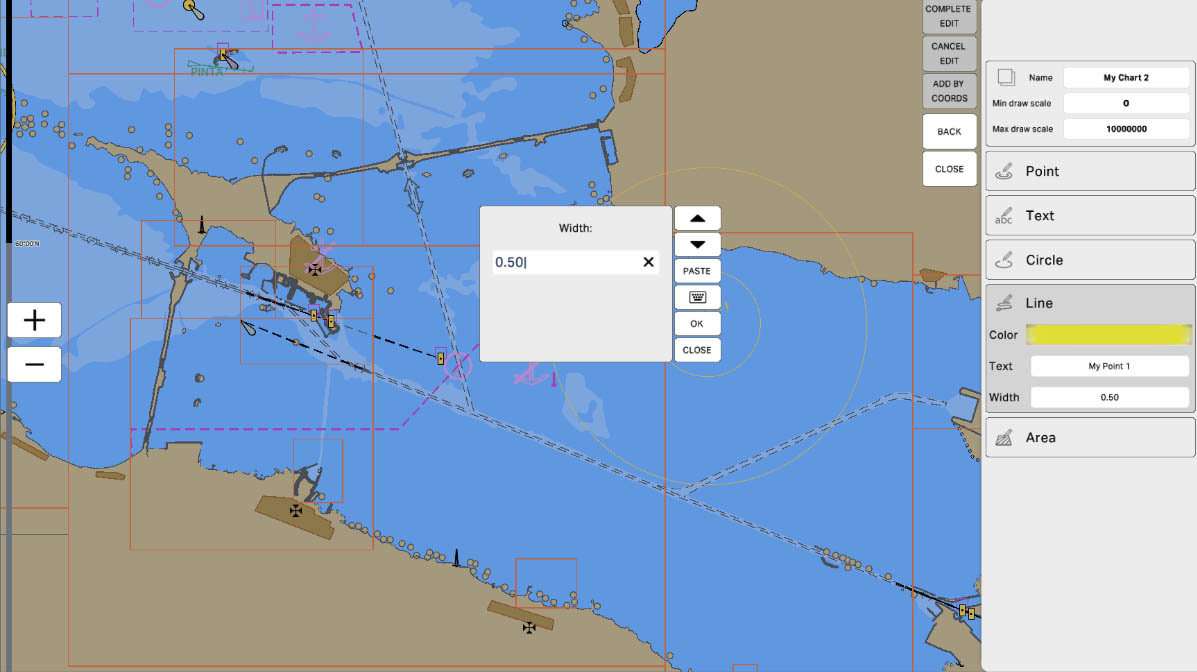

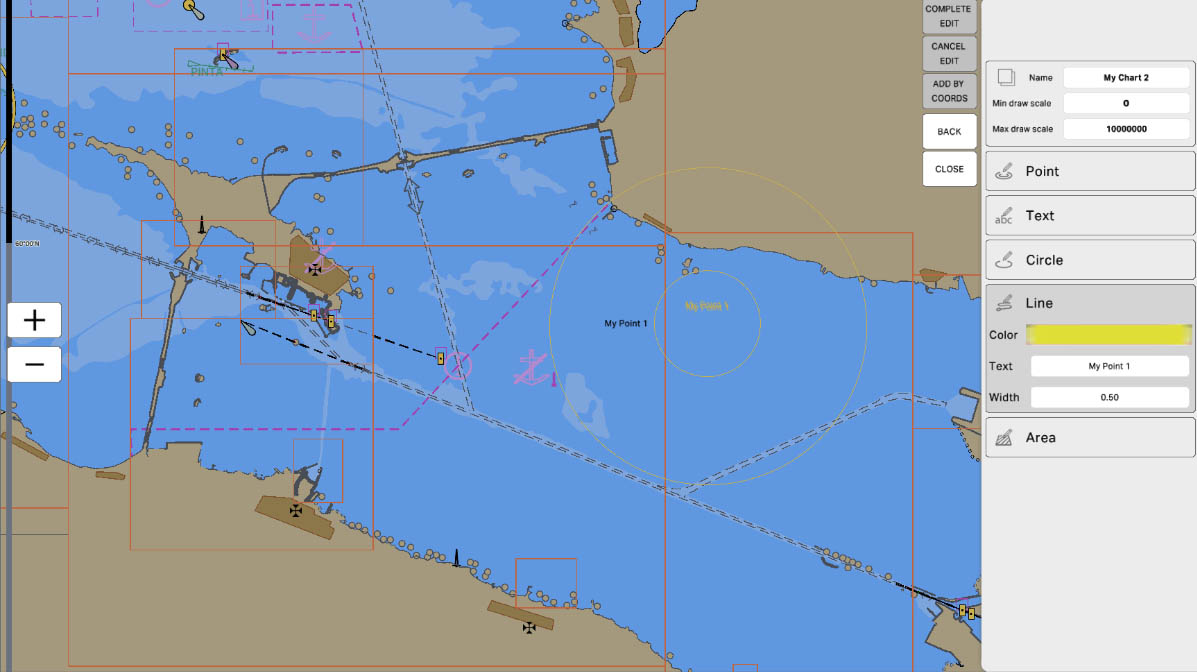

You can assign a color, name, and thickness to the line. By default, the thickness is set to 0.50. To edit this value, click on the current thickness setting.
Editing Tool - Line
My Point 1
21
My Point 1

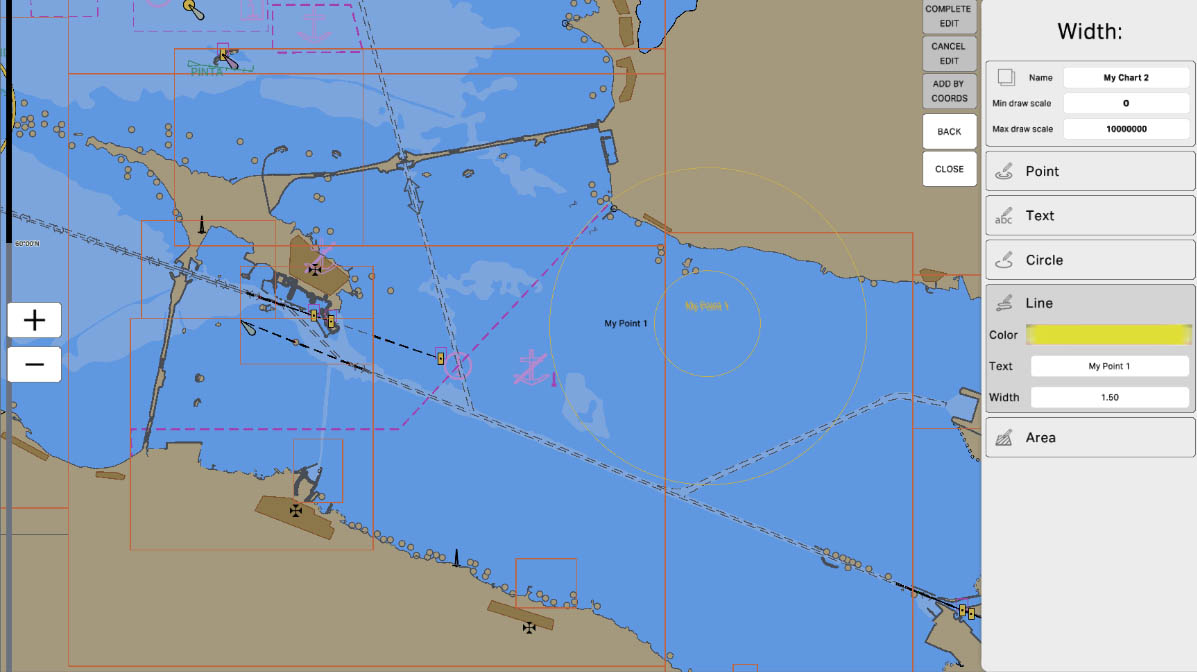

You can assign a color, name, and thickness to the line. By default, the thickness is set to 0.50. To edit this value, click on the current thickness setting. In the popup window, you can enter a new thickness value using the keyboard, the on-screen keyboard, or the increment/decrement buttons. The "up" (arrow up) and "down" (arrow down) buttons allow you to adjust the thickness in increments of 1.00. Set your desired value, such as 1.50, and confirm the change by clicking the OK button.
Editing Tool - Line
My Point 1
21

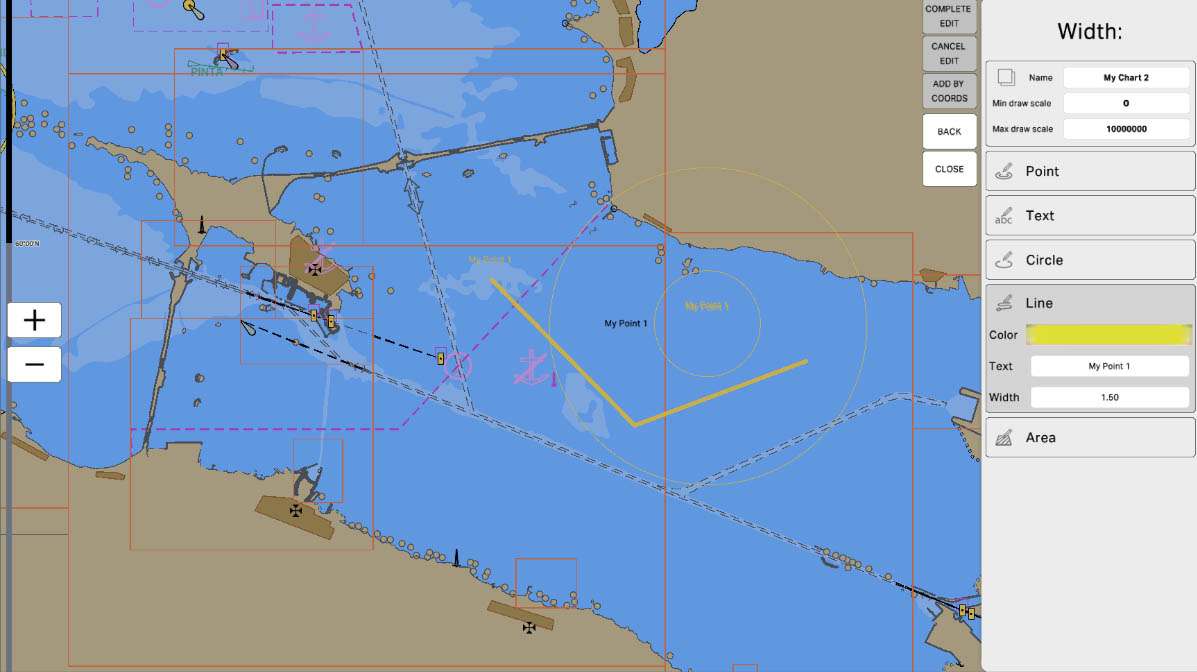

You can assign a color, name, and thickness to the line. By default, the thickness is set to 0.50. To edit this value, click on the current thickness setting. In the popup window, you can enter a new thickness value using the keyboard, the on-screen keyboard, or the increment/decrement buttons. The "up" (arrow up) and "down" (arrow down) buttons allow you to adjust the thickness in increments of 1.00. Set your desired value, such as 1.50, and confirm the change by clicking the OK button.
Editing Tool - Line
My Point 1
21

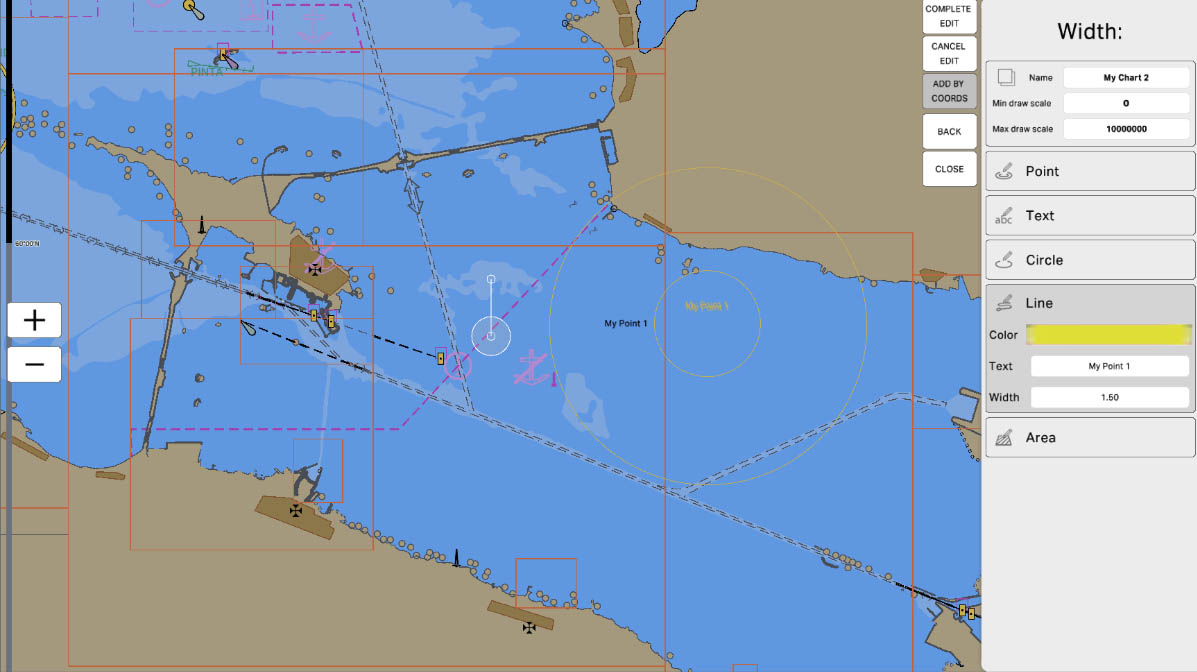

You can place the line on the map visually by clicking on the map at the locations where the end and intermediate points of the line should be. We will review the method of placing the line visually.

Click "Next" to continue.
Editing Tool - Line
My Point 1
My Point 1
22

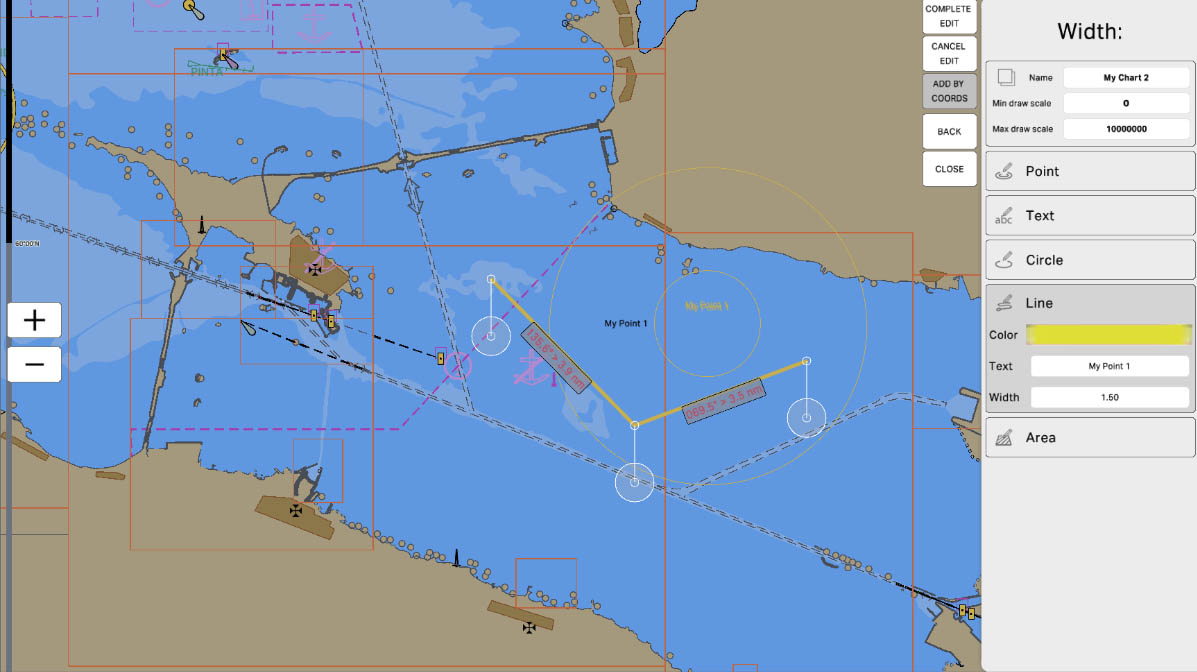

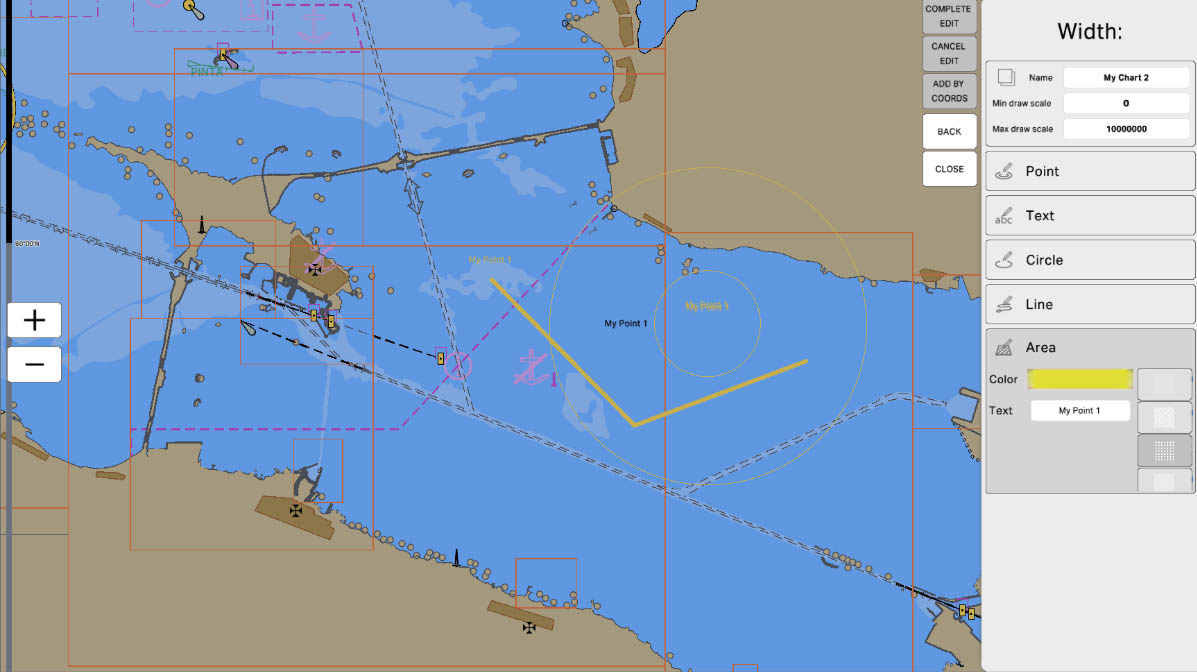

The line made of three points is drawn. You can adjust it by grabbing the circles at each point with the mouse and moving them to the desired position.

To finalize and confirm the changes, click "Complete Edit."
Editing Tool - Line
My Point 1
My Point 1
23

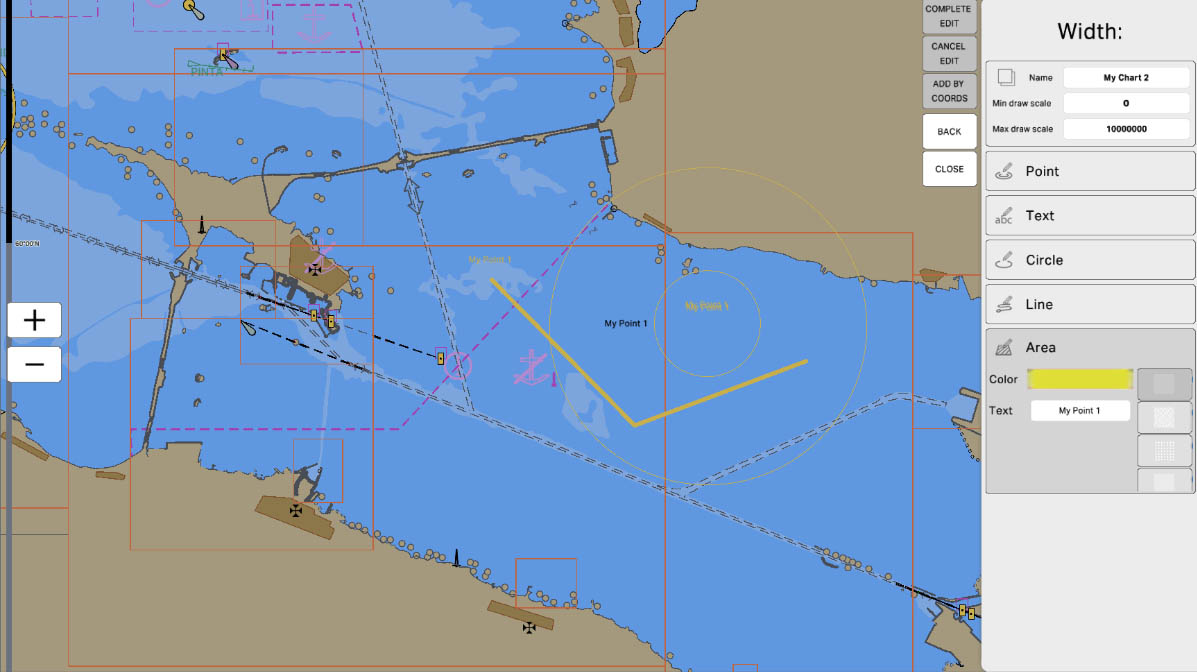

The line has been successfully established. Next, we will look at the editing tool — Area. This tool allows you to create polygonal areas on the map, which can be used to mark zones such as no-go areas, danger zones, or specific regions requiring special attention. You can customize the area’s color, name, and shape to visually highlight certain sections on the map.

Click on the "Area" tab to continue.
Editing Tool - Area
My Point 1
My Point 1
24
My Point 1
My Point 1
For the Area tool, you can select the following parameters:Fill Color: Determines the color used to fill the area.Name: Allows you to assign a name to the created area.Fill Pattern: Different fill patterns can be used to visually distinguish the area. The available patterns are listed in a scrollable menu from which you can choose the most suitable option.

To proceed with the configuration, click "Next".
Editing Tool - Area
25
My Point 1
My Point 1
The Fill Pattern are arranged in a list that can be scrolled down.

Click on the suggested Fill Pattern to continue.
Editing Tool - Area
26

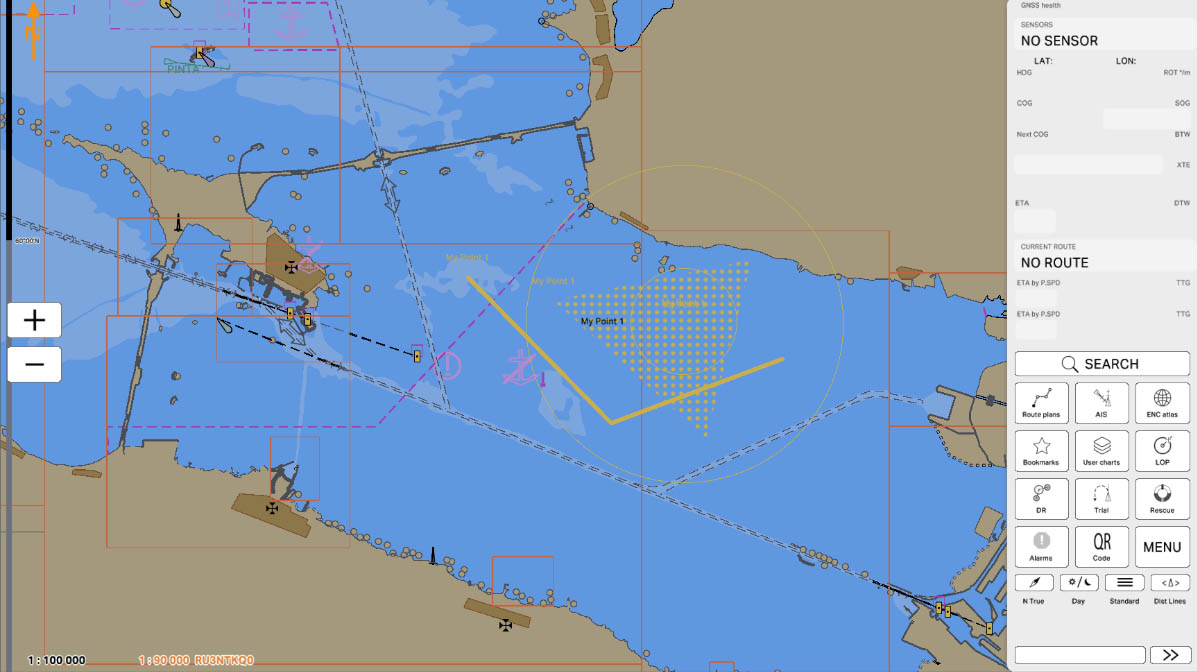

Navigation toolbar is located on the right side of the screen. The panel contains buttons for most used actions.
Editing Tool - Area
My Point 1
My Point 1
27

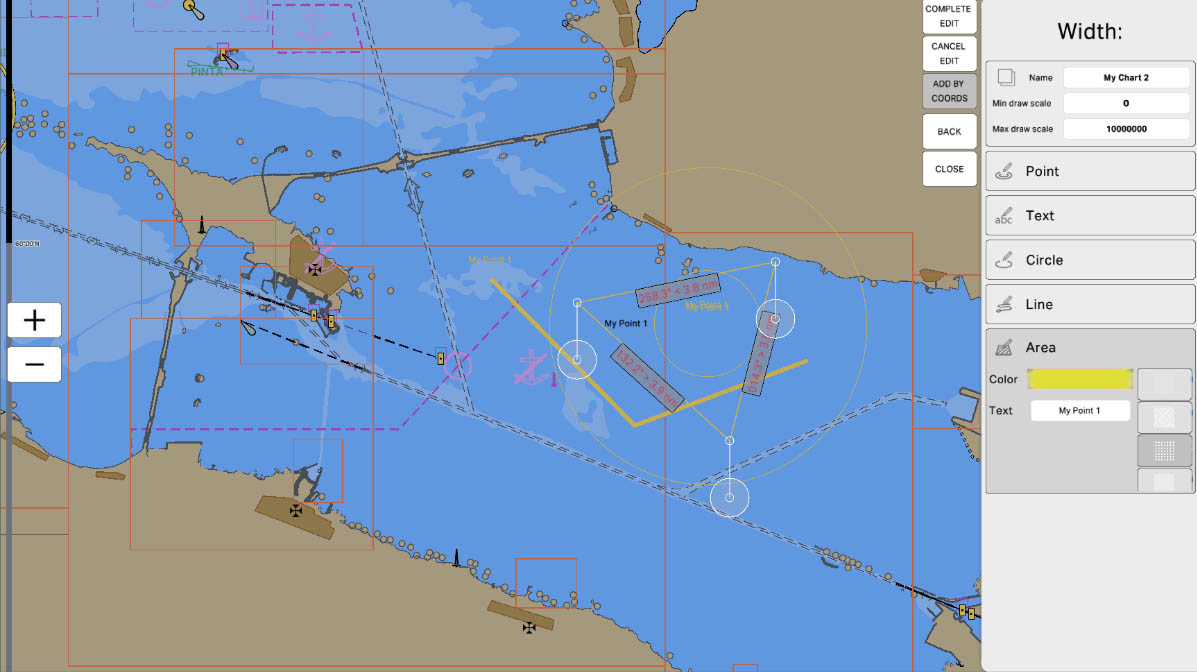

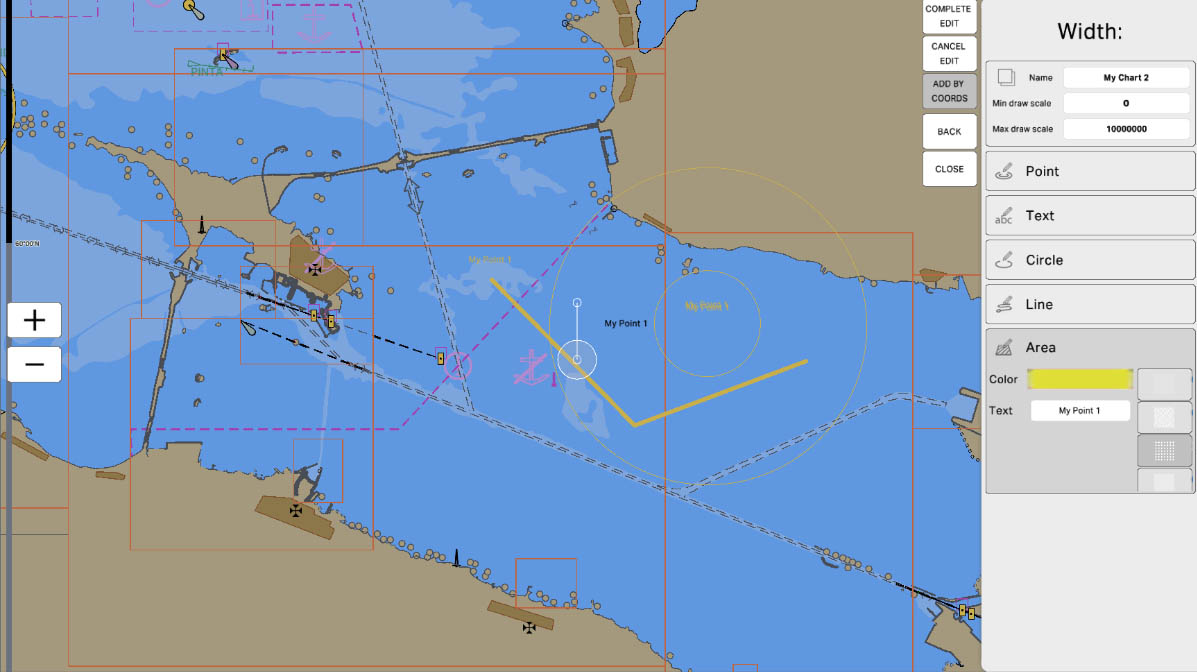

The fill pattern has been selected, as indicated by the green highlight around the button with the chosen pattern type. You can now place the area on the map by clicking on the map at the locations where the boundary points of the area will be.

Once all the boundary points for the area are set, click "Complete Edit" to finalize the editing and confirm the creation of the area.
Editing Tool - Area
My Point 1
My Point 1
28
My Point 1
Now, let’s look at how to edit existing objects. To edit a point, you need to click on it to bring up the context menu. Click on the point we created to proceed.
Editing Existing Objects
My Point 1
29
My Point 1
In the context menu that appears, select the "Edit" button. This will allow you to edit the selected point.
Editing Existing Objects
30
Auxiliary lines and a circle appear around the selected point. By holding down the left mouse button on the circle, you can move the point to a new location. You can also choose a different symbol from the list.

After making the necessary changes, click "Next" to continue.
Editing the Point
31
My Point 1
My Point 1
The point has been successfully moved to the new location, and its symbol has been changed.

To complete the editing and confirm the changes, click "Complete Edit".
Completing Point Editing
My Point 1
32
My Point 1
The point has been successfully edited. Next, let's proceed to editing an existing circle. To do this, visually locate the center of the circle and click on it to bring up the context menu.

To continue, click on the central area of the circle.
Editing a Circle
My Point 1
33
My Point 1
In the context menu that appears, select the "Edit" button. This will allow you to edit the selected circle, adjusting parameters such as color, text, radius, or position.
Editing a Circle
My Point 1
35
My Point 1
